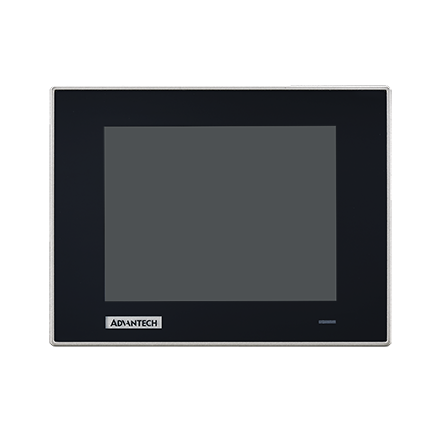

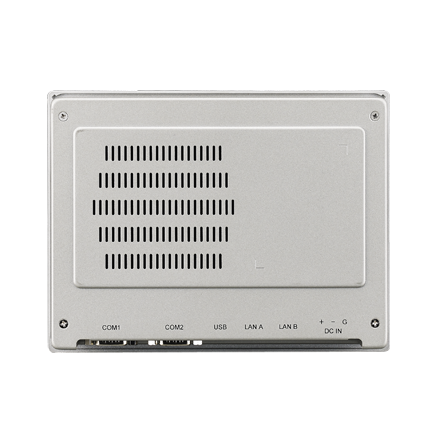

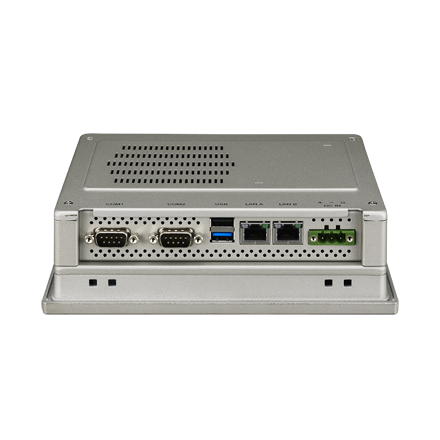

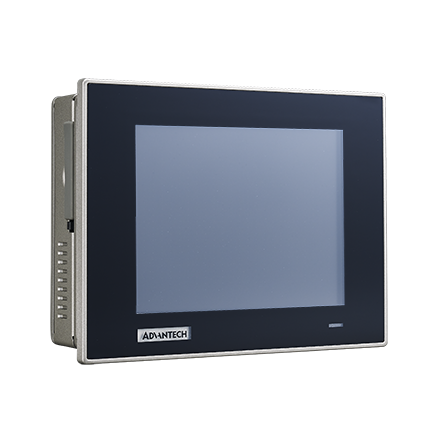

About TPC-651T Industrial Thin Client

The TPC-651T is a slim and stylish client terminal which comes with a 5.7″/6.5″ VGA LCD screen. It runs on the low powered in-built Intel® Atom™ E3827 1.75 GHz dual-core processor with 4GB DDR3L SDRAM that ensures blazing-fast computing performance in a compact system that requires no fan.  It runs with ease on a wide operating temperature range of -20 to 60° C, and incorporates a full-size mini-PCIe slot to increase its functionality that fulfills a variety of automation applications needs. To guarantee durability in operating, the TPC-651T offers a true-flat touch screen with IP66 complied front protection, die-cast Al Alloy front bezel and a 5-wire resistive touch. Through the Mini-PCIe slot, an optional Advantech iDoor technology may be installed which provides more I/O connectors, an isolated digital IO, a Field-bus Protocol, a wide range of communication and an MRAM for battery backup.

Features:


  • Powered by a strong Intel® Atom™ E3827 1.75 GHz Dual-core Processor with 4GB DDR3L SDRAM
  • Provides AC/DC support through an optional Power adapter
  • Shows current front operating status via LED Indicators
  • Highly reliable with a 5-wire Resistive Touch Screen
  • Offers a full-size Mini PCIe Expansion support
  • Incorporates an Industry-specific 5.7-inch VGA TFT LCD screen with more than 50K years of LED Back-light
  • Operates with ease at a wide operating temperature range of -20 to 60°C
  • Comes with the option of installing iDoor technology for diverse applications
  • Compact system with Fan-less configuration, Al Alloy Front Bezel, and Chassis Grounding Protection
  • Ensures True-flat with an IP66 complied front panel protection
  • Compatible with the Advantech SNMP Sub-agent
  • Runs Advantech SusiAccess Remote Device Management Software
