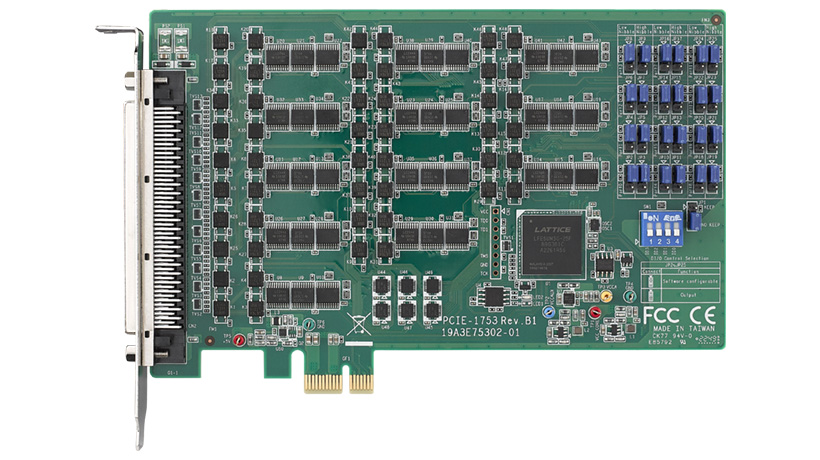

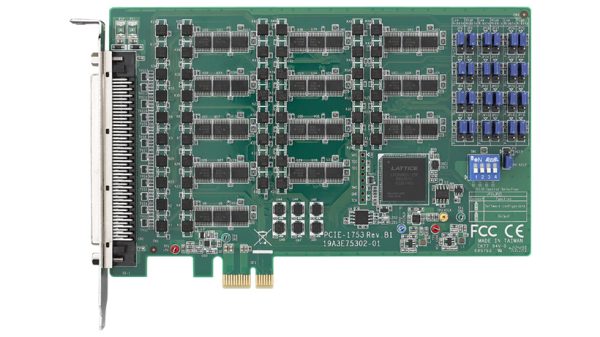

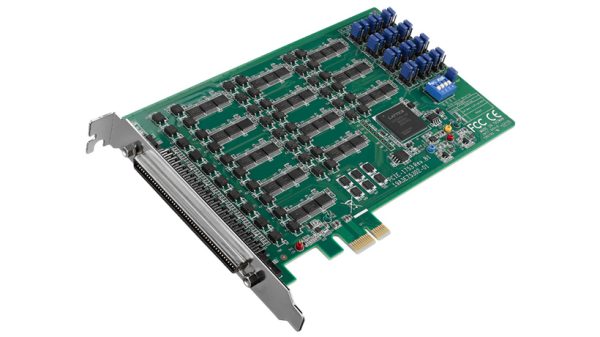

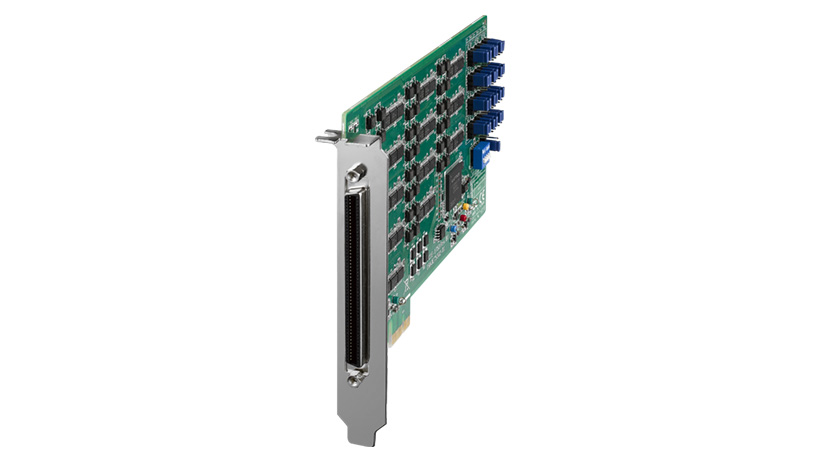

PCIE-1753

96-ch Digital I/O PCIE Card

  • Fully compatible with PCI-1753
  • Up to 96 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Supports both dry and wet contact
  • Interrupt handling capability
  • Output status read-back
  • Supports input data pattern match and change of state functions
  • Keep I/O settings and output status after hot reset
  • Buffered circuits for higher driving capacity than the 8255
  • High-density 100-pin SCSI connector
